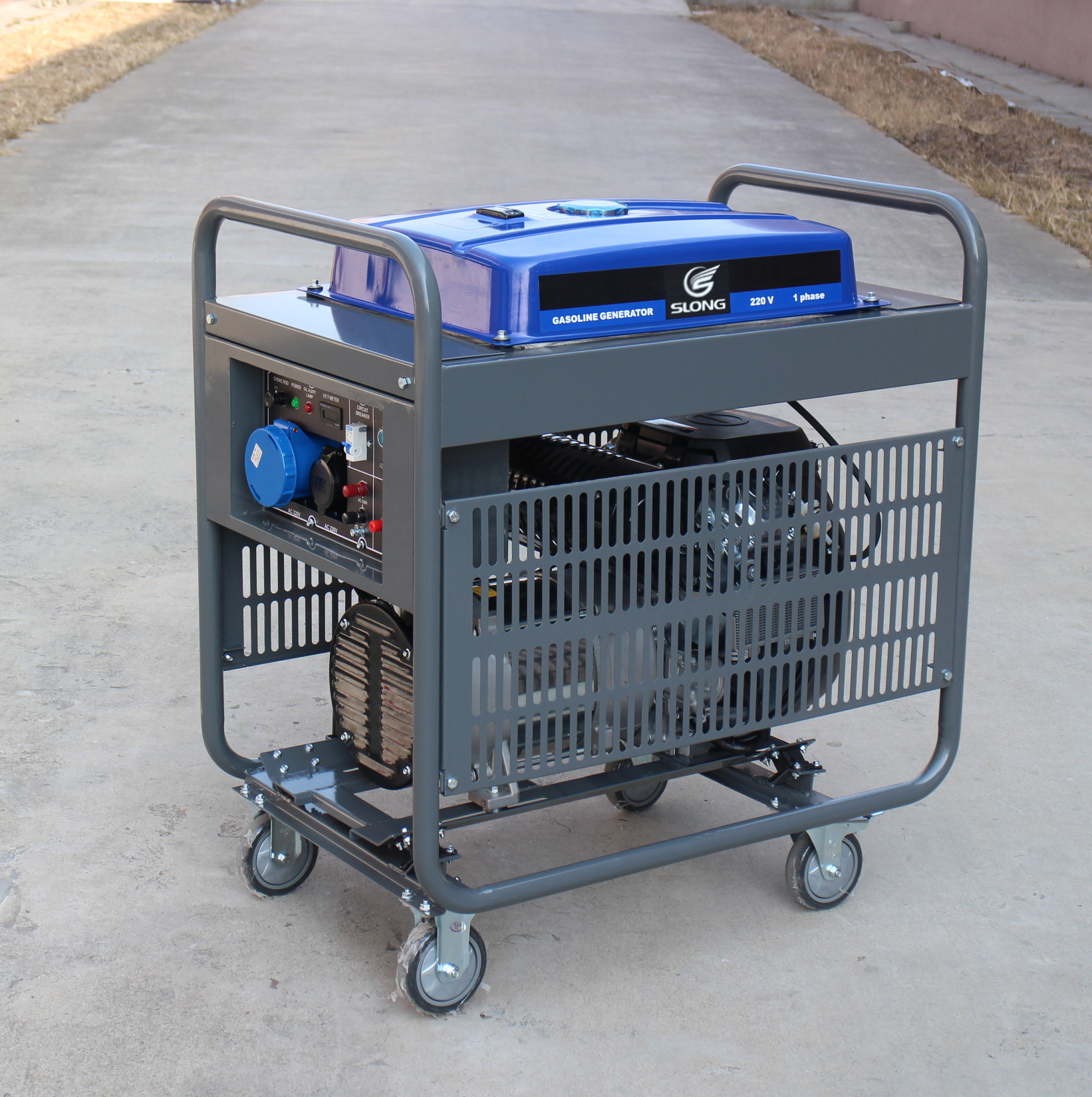

SLONG SL13500E PORTABLE GASOLINE GENERATOR 12KW

2 CYLINDER GENERATOR

Product Specification

Description		SL12000E	SL13500E
Generator	Rated frequency	50hz	50hz
	Rated AC Voltage	220V	220V
	Rated AC output	10.0 KW	12.0 KW
	Max AC output	11.0 kw	13.0 KW
	DC output	12V-8.3A	12V-8.3A
	Power Factor	1	1
ENGINE	MODEL	GB680	GB750
	Engine type:	V-twin, 4 stroke,air cooled, OHV
	Bore*stroke	78*71 mm	82*71 mm
	Displacement:	678 ml	750 ml
	Rated power:	14.5 kW/3000rpm	16.0 kW/3000rpm
	Max .Torque:	42 N.m/2500rpm	47 N.m/2500rpm
	Idle speed：	1750rpm±150	1750rpm±150
	Start mode:	Electric start	Electric start
	Fuel tank capacity:	w/o	w/o
	Engine oil capacity：	1.5L	1.5L
	Recommend engine oil type:	SAE10W-30	SAE10W-30
	Fuel consumption:	≤370g/kW.H	≤370g/kW.H
ALTERNATOR	Model	XNF-10	XNF-12
	Rated power of alternator	10 KW	12 KW
	Rated current	43.5 A	52.23 A
	Phase	Single phase	Single phase
	Voltage	230 V	230 V
	Output voltage stability	2.0%	2.0%
	Frequency	50 HZ	50 HZ
	Power factor	1	1
	Generator type	Synchronous	Synchronous
	Excitation	Brush, Self-excited with auxiliary winding
	Excittation current	3.5 A	3.5 A
	AVR	XNFD10-220A	XNFD10-220A
	Efficiency performance coeficient	80%	80%
	Auxiliary winding voltage	170 V	170 V
	Rotation speed	3000 RPM	3000 RPM
	Winding protection class	IP21	IP21
	Temperature rise class	H	H
	Insulation class	H	H
	Material	100% copper wire	100% copper wire
SET	Fuel tank capacity	50 L	50 L
	Net weight	160 KG	180 KG
	Packing Size mm	920620950 mm	920620950 mm
